01
Mobile Medical Waste Disposal Equipment

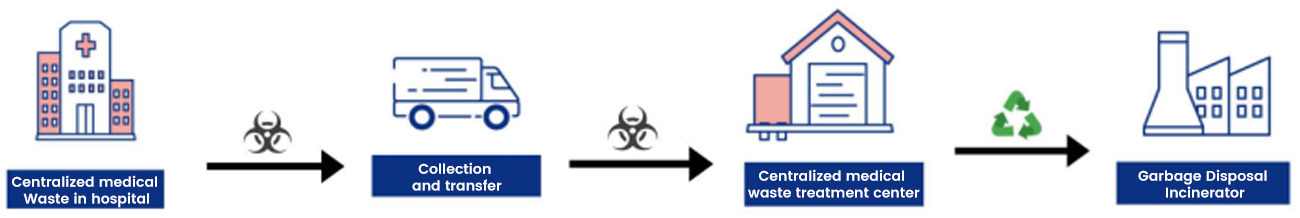

Disadvantages of centralized processing mode
Currently, the medical waste treatment mode in China is basically to build a medical waste treatment center in the administrative region above county and city level to collect and transfer the medical waste of each medical unit before centralized treatment. This mode has one disadvantage. Under the circumstance of epidemic, there are problems such as insufficient collection and treatment capacity of medical wastes and uneven distribution of production capacity in various regions. For individual regions without centralized treatment facilities for medical wastes, it is easy to cause untimely treatment of medical wastes and risk of secondary pollution during storage. Moreover, there is a great risk to transport the medical wastes from the epidemic area to the non-epidemic area where the medical waste treatment device is located.

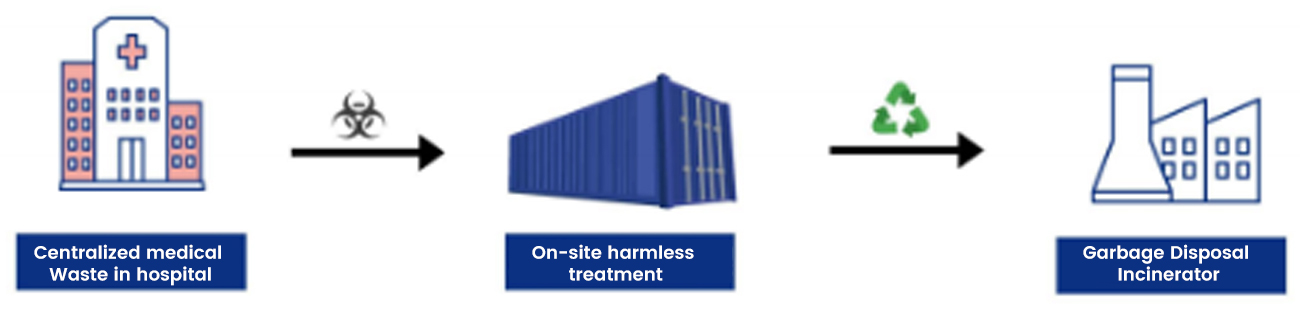

Mobile medical waste treatment equipment and its advantages
The mobile medical waste treatment equipment is a kind of equipment that, based on our mature medical waste high-temperature steam centralized treatment equipment and taking the standard container body as the bearing unit, fixes all the functions of medical waste treatment in the container body, and completely inactivates the medical waste only by the water and power provided externally, so as to achieve harmless treatment. It can locally treat the medical waste generated by a hazardous source and cut off the risk of spreading the hazard to the outside. If we are equipped with medical waste treatment shelter equipment, when the epidemic situation occurs and the amount of medical waste doubles, we can mobilize the medical waste treatment shelter in the nearby area for timely reinforcement, so as to solve all the generated medical waste on the spot and effectively prevent the virus from spreading through the medical waste.
Since the outbreak of the new epidemic, the mobile medical waste treatment equipment has played a positive role. It covers a small area, and can move the whole set of equipment to another place at any time according to the need for timely and convenient treatment, effectively reducing the risk of leakage during the transfer of medical waste. The equipment can be transported to the work site by ordinary trucks without re-installation. The equipment is simple in operation, low in noise, beautiful and economical.
Equipment and operation of mobile medical waste treatment equipment
The disposal equipment is highly integrated internally, through many R&D and verification processes, and mainly consists of the following units:
1. Medical waste final assembly unit;
2. Entry and exit units;
3. High-temperature steam sterilization unit;
4. Exhaust gas treatment unit;
5. Wastewater treatment unit;
6. Medical waste lifting unit;
7. Medical waste crushing unit;
8. High-temperature steam supply and control unit;
9. Automatic control recording unit.

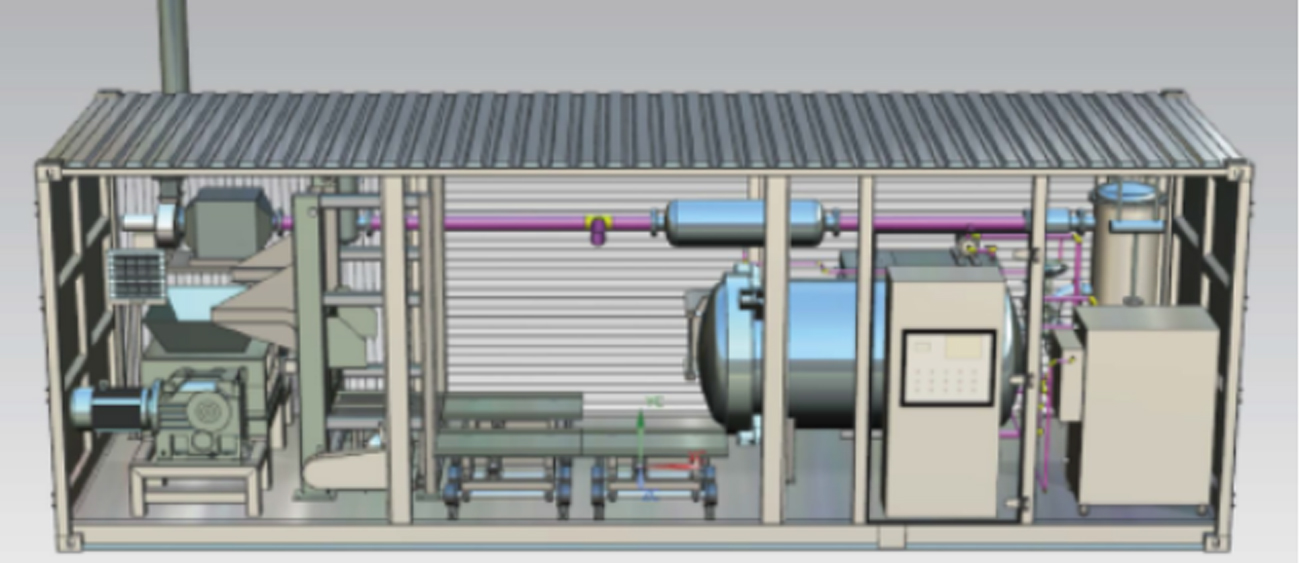

Three-dimensional view of mobile medical waste treatment equipment
The whole treatment equipment is made of stainless steel, requiring no special treatment, with low failure rate, easy maintenance and low maintenance cost.
-

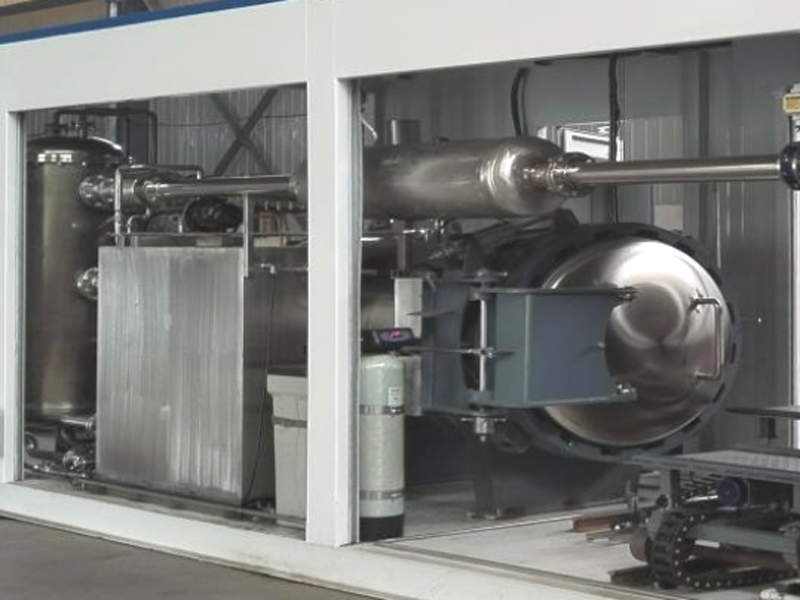

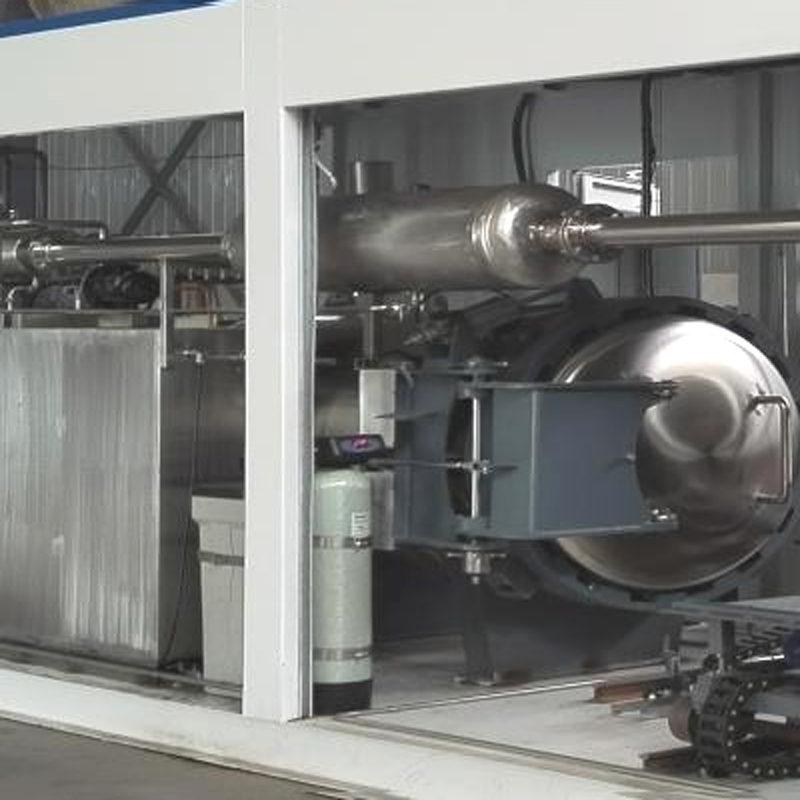

Picture of Sterilization Chamber
-
Crushing unit Diagram
Disposal Equipment Sterilization Process
The medical waste is loaded into the sterilization vehicle and enters the high temperature steam sterilization cabin. The cabin door is automatically closed and locked. The program control operation is started to extract non-condensable air. Saturated steam is filled to make the temperature in the sterilization equipment reach 134 ℃. The disinfection is automatically timed for 45 minutes. High-temperature steam in the cabin is extracted and the cabin door is opened. Then, the treated waste is lifted, crushed and output.
In the process, the flue gas and water vapor purification system is provided, and the spray method, filtration method and adsorption method are combined as the main treatment process to realize clean gas emission. The emission standard meets the relevant requirements of Integrated Emission Standard of Air Pollutants and Odor Emission Standard. The wastewater generated is collected to the front pipe of the UV sterilizer and discharged after disinfection by the UV sterilizer. For the control of equipment noise, the installation of silencer and the use of silent air compressor greatly reduce the generation of noise.
Equipment operation:

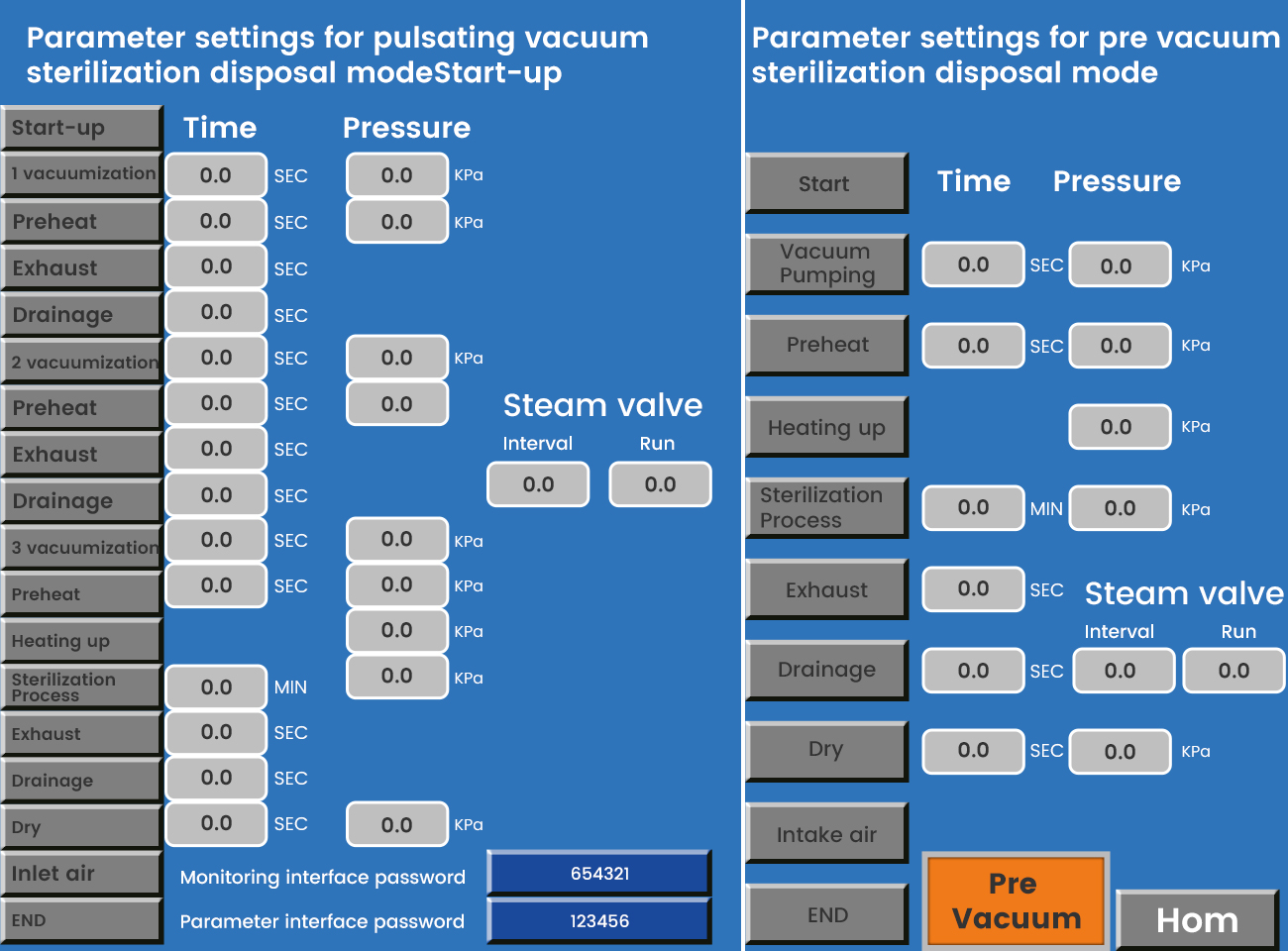

The whole sterilization operation procedure of the disposal equipment is computer fixed and automatically controlled, without manual intervention. The operation is simple and avoids the risk of contacting medical waste. Only 2 operators are required for each shift, and they can work after simple training.
Sterilization effect:
The medical waste can be treated as common domestic waste, landfilled or transported to the waste incineration plant for incineration and power generation. Through the sterilization effect test, the sterilization effect of the high temperature steam treatment equipment for medical waste completely meets the requirements of Technical Specification for Sterilization.
Site conditions and construction period:
Both indoor and outdoor, the site is basically flat, 380V power supply or generator can be put into operation on the same day.
Application group:
Hospital, health center, clinic, medical shelter and other medical institutions; Medical scientific research institutions, epidemic detection institutions and epidemic prevention institutions are used as emergency backup equipment for public health emergencies.
Service life:
The service life of the complete machine is 10 years. The vulnerable part of the sterilization cabin is the sealing ring of the cabin door, and the service life of the sealing ring is 3-6 months; The service life of crusher blade is two years; Provide quick-wear parts such as sealing ring of compartment door.

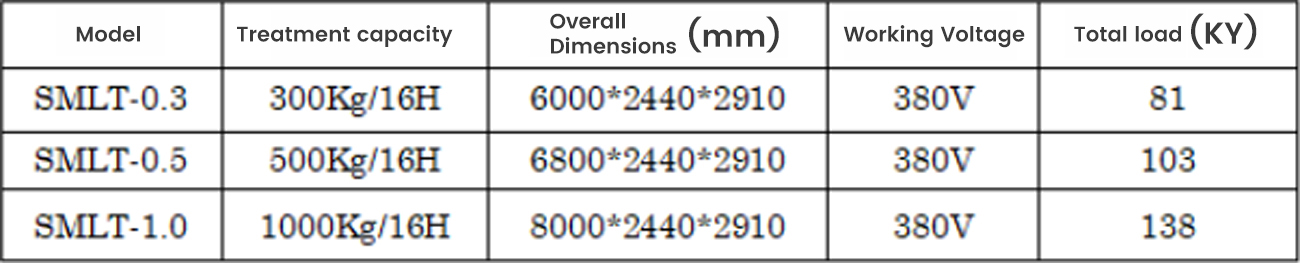

Product specification:
Based on different demands for treatment capacity of medical waste, the medical waste treatment equipment of our company can be selected in multiple specifications, such as daily treatment capacity of 1000kg, 500kg and 300kg (calculated as per 16 hours).
